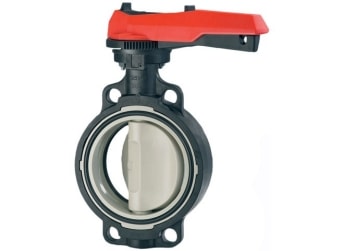

Type-55 Butterfly Valves

Sizes: 2" to 16"
PVC, PP, PVDF
PTFE back w/Neoprene
Body Type: Ductile Cast Iron
Applications

Isolation valves, control valves, chemical processing, mining

Learn More

Type-56 Butterfly Valves

Sizes: 16" to 24"
PP, PVDF
Seat Material: EPDM/FKM/Nitrile
Disc Materials: PP/PVDF
Applications

Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation

Learn More

Type-57 Butterfly Valves

Sizes: 1-1/2" to 14"
PDCPD
Seat Material: EPDM, FKM, Nitrile
Disc Materials: PP, CPVC, PVC, PVDF
Applications

Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation

Learn More

Large Diameter Butterfly Valves

Sizes: 28" to 48"
PDCPD
Seat Material: EPDM, FKM, Nitrile
Disc Materials: PVC, CPVC, PP, PVDF
Applications

Isolation valves, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation

Learn More

Thermoplastic Butterfly Valves

Sizes: 3" to 6"
Body Materials: CPVC Schedule 80, Natural Kynar, PVC Schedule 80, Red Kynar PVDF
O-ring: FKM or EPDM
150 psi Service
Applications
  • Temperatures up to 210°F
  • Chemical Processing
  • Industrial Applications
Learn More

Thermoplastic Butterfly Valves

Sizes: 2" to 6"
Type: 563 Wafer Aqua, 567 Wafer, 578 Lug, 365 Lug
150 psi Service, Bi-Directional
Applications

Water Treatment, Power Plants, Marine, Electroplating, Chemical Process Industry, Automotive Industry, Cooling equipment, Aquariums, Swimming pool construction, Ultrapure DI Water, Hot Ultrapure DI Water

Learn More

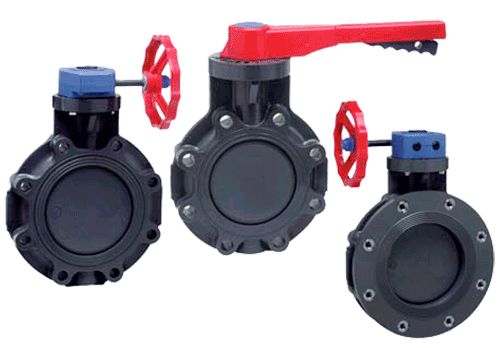

Thermoplastic Butterfly Valves

Sizes: 2" to 24"
Body Materials: PVC, CPVC, GRPP
Liner Material: Viton, FPM, EPDM, Nitrile
Applications

Water & Wastewater Treatment, Aquatic & Animal Life Support Systems, Chemical Processing and Handling, Marine & Corrosive Environments, Mining, Metal Plating & Surface Finishing, Landfills / Environmental Infrastructure, Water / Theme Parks

Learn More

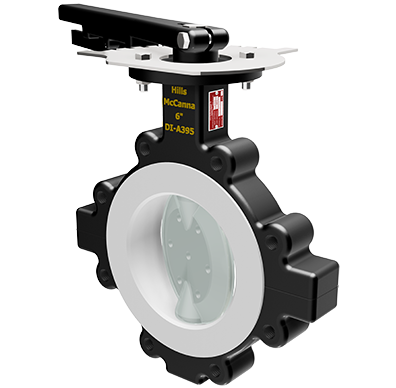

ChemTite® Butterfly Valves

Sizes: 2" to 24"
150 psi Service
Body Material: Ductile Iron
Disc Material: PFA, S.S., Hastelloy, Titanium, UHMWPE
Ideally Suited for
  • Chlorinated Brine, Chlorine Dioxide & Chlorinated Water
  • Wet Chlorine Gas
  • Sulfuric, Phosphoric, Hydrobromic, & Hydrochloric Acids
Learn More

Thermoplastic Butterfly Valves

Sizes: 1-1/2" to 6"
Body Materials: PVC, GRPP
150 psi Service
Applications
  • EPDM, FPM, or PTFE Seals
  • Chemical Processing, Industrial Plating, Waste treatment systems
  • Wafer or Lugged Body Style
Learn More

C10 Mosites Butterfly Valves

Sizes: 2" to 36"
150 psi Service
High Gloss Epoxy Finish
Ideally Suited for
  • Water, Chemicals, Slurries
  • Air & Vapors
  • Full Vacuum and Dead End Service
Learn More

A20 Mosites Butterfly Valves

Sizes: 2" to 12"
275 psi Service
Cast Carbon Steel
Ideally Suited for
  • Continuous Cycling
  • Reliable Service in Flow Control Applications
  • Full Vacuum and Dead End Service
Learn More

C30 Mosites Butterfly Valves

Sizes: 2" to 12"
150 psi Service
High Gloss Epoxy Finish
Ideally Suited for
  • Water, Chemicals, Slurries
  • Air & Vapors
  • Full Vacuum and Dead End Service
Learn More

Thermoplastic Butterfly Valves

Sizes: 2" to 8"
PVC or Polypro
Seats & O-rings: EPDM or FKM
150 psi Service
Features & Benefits
  • One piece solid 410SS shaft with square drive for support and positive disc rotation
  • Electric and pneumatic actuation packages with positioning control available
Learn More

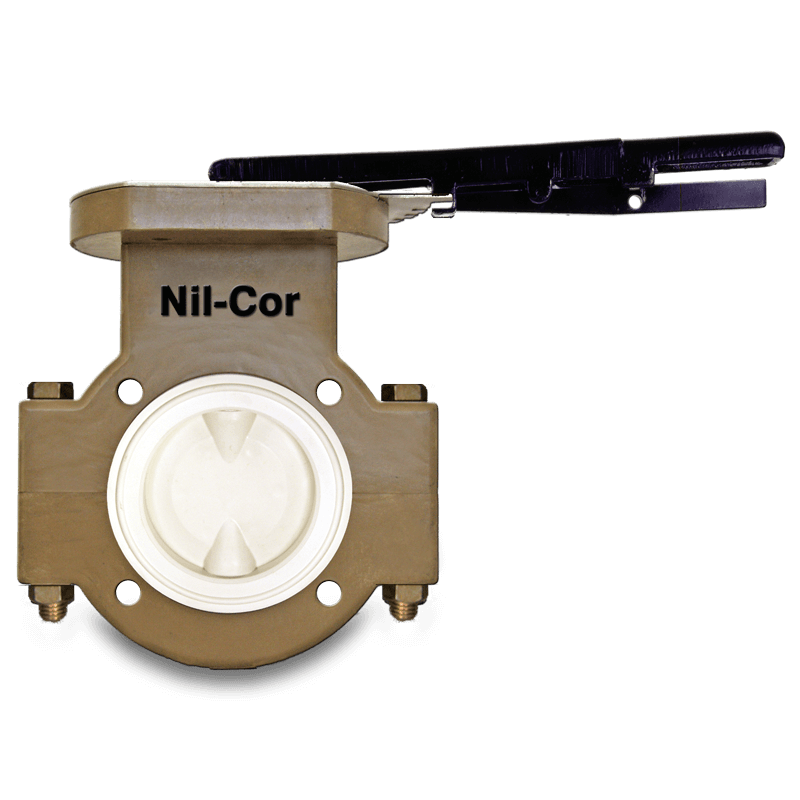

800 Series Composite Butterfly Valves

Sizes: 2" to 12"
150 psig Service
Made from Durcor® Advanced Fiber Reinforced Composite
Tensile & Compressive Strength Rivals Steel
Ideally Suited for
  • Acids
  • All Bleach Solutions
  • Salt Water and High Chlorides
  • Temperatures from (-)60°F to (+)250°F
Learn More

860 Series Butterfly Valves

Sizes: 2" to 12"
150 psi Service
Made from Durcor® Advanced Fiber Reinforced Composite
Tensile & Compressive Strength Rivals Steel
Ideally Suited for
  • Acids
  • All Bleach Solutions
  • Salt Water and High Chlorides
  • Temperatures from (-)60°F to (+)250°F
Learn More

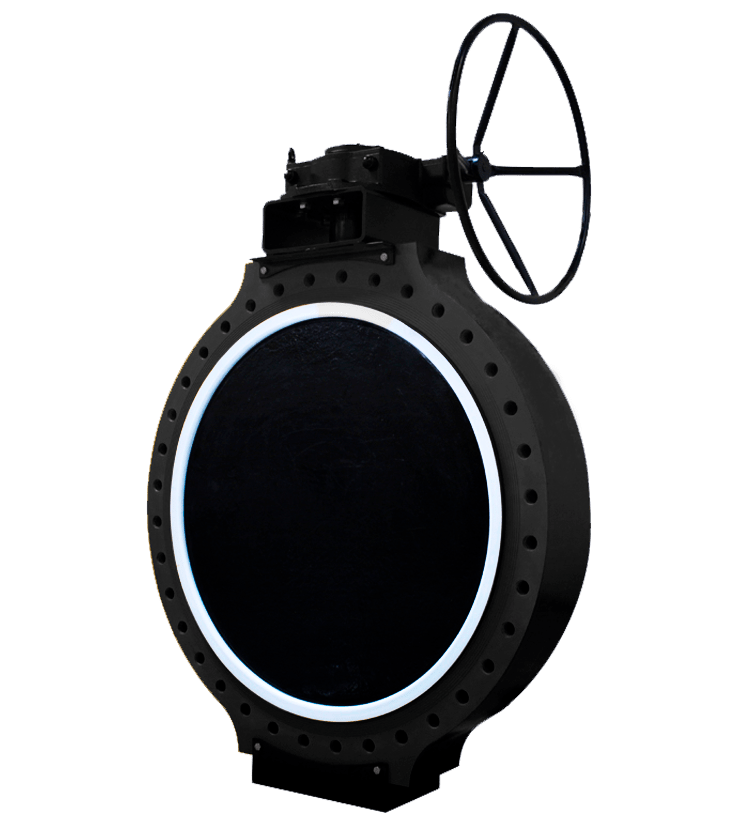

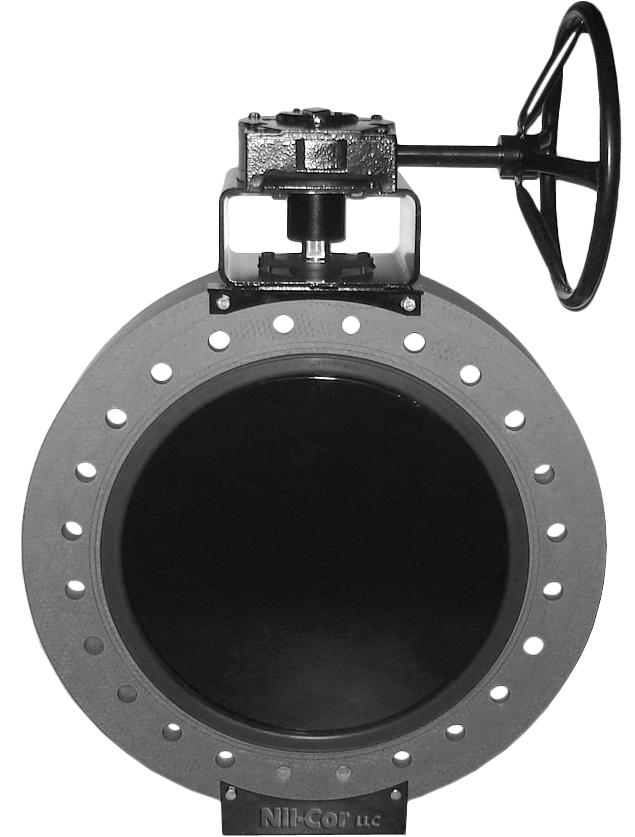

890 Series Butterfly Valves

Sizes: 14" to 42"
150 psi Service
Made from Derakane 411 Vinyl Ester Reinforced with ECR Glass Fiber
Ideally Suited for
  • Chlorinated Brine, Chlorine Dioxide & Chlorinated Water
  • Wet Chlorine Gas
  • Sulfuric, Phosphoric, Hydrobromic, & Hydrochloric Acids
Learn More

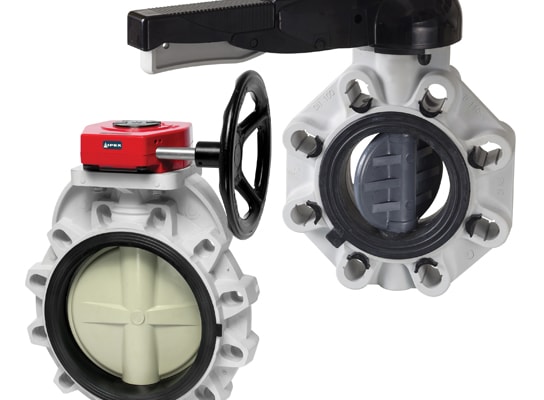

Thermoplastic Butterfly Valves

Sizes: 1-1/2" to 60"
Body Materials: PVC, CPVC, Polypropylene
150 psi Service
Type: Standard, Wafer & Lug
Features & Benefits
  • Special Offset Disc
  • Field Replaceable Seat
  • Limited Contact Interference Seat Design
  • Field Installable Lug Inserts or Factory Installed True Lug Valves
Learn More

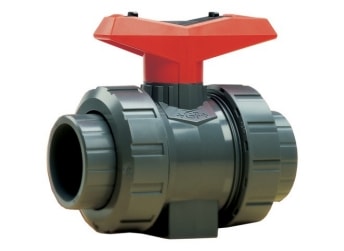

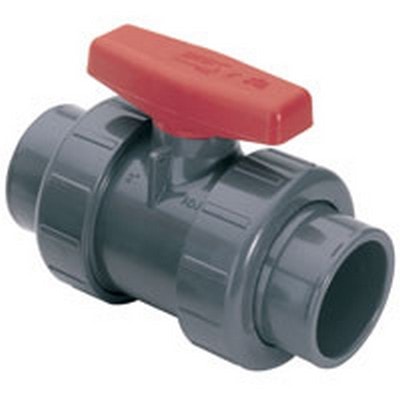

Thermoplastic Ball Valves

Sizes: 3/8" to 4"
Body Materials: PVC, CPVC, PP, PVDF
EPDM, FKM
Body Type: Single Piece, True Union
Applications

Isolation valves, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation, chemical processing

Learn More

Thermoplastic Ball Valves

Sizes: 1/2" to 6"
Body Materials: Black Polypropylene, Natural Polypropylene, CPVC Schedule 80, Natural Kynar, PVC Schedule 80, Red Kynar PVDF
O-ring: FKM or EPDM
250 psi Service
Applications
  • Temperatures up to 280°F
  • Chemical Processing, Industrial plating, waste treatment systems
  • Ultra-Pure Water, deionized/distilled and demineralized water systems
Learn More

Thermoplastic Ball Valves

Sizes: 1/2" to 6"
Body Materials: PVC, CPVC, PP, PVDF
O-rings: EPDM, FRM, FPM, others on request
Ball Seal: PTFE
Applications

Chemical Process Industry, Life Sciences, Microelectronics, Measurement & Control, Water Treatment, Marine, Food & Beverage, CPI, Non-critical Chemical Applications, Swimming Pools, Laboratory, Water Distribution, Agriculture, Irrigation, Fish Farming

Learn More

Thermoplastic Ball Valves

Sizes: 2 1/2" to 4"
Body Materials: PVC, CPVC, GFPP
250 psi Service
Applications

Water & Wastewater Treatment & Clean Water technology, Chemical Processing & Transfer, Aquatic & Animal Life Support Systems, Marine & Corrosive Environments, Metal Finishing & Plating, Mining, Commercial Plumping, Water Parks & Features, General Processing, Sodium Hypochlorite Systems, and more

Learn More

ChemTite® PFA Lined Ball Valves

Sizes: 1" to 6"
250 psi Service
Ductile Iron Body
Heavy Duty PFA Liner
Ideally Suited for
  • Strong Acids Up To 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Bleach Solutions
  • Temperatures from (-)20°F to (+)400°F
Learn More

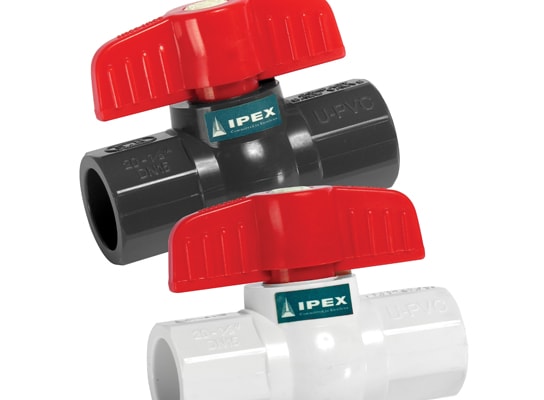

Thermoplastic Ball Valves

Sizes: 1/2" to 6"
Body Material: Schedule 40 white PVC, Schedule 80 grey PVC
O-ring: PTFE, EPDM, FPM
Applications

Plant water supply and distribution, Wash-water & Recovery systems, Pulp & Chemical Recovery Systems, Water treatment

Learn More

Thermoplastic Ball Valves

Sizes: 3/8" to 4"
Body Material: PVC, CPVC, Natural Polypro, PVDF, with FKM or EPDM
Available in 2-way and 3-way
Ideally Suited for

Z-vent for sodium hypochlorite, Lock-out/Tag-out, Metering, Characterization, Stem Extensions, and Lateral Reducing connections

Learn More

Polyvalve® Polyethylene Ball Valves

Sizes: 1/2" to 12"
High-Density Polyethylene
Smooth-Bore
Available in SDR 9, 11, 13, 17
Ideally Suited for
  • Natural Gas Distribution & Gathering
  • Landfill & Hydrocarbon Fuel Gases
  • Water, Wastewater, Irrigation
  • Chemical Services (Acids/Bases)
  • Temperatures & Pressure Service Dependant
Learn More

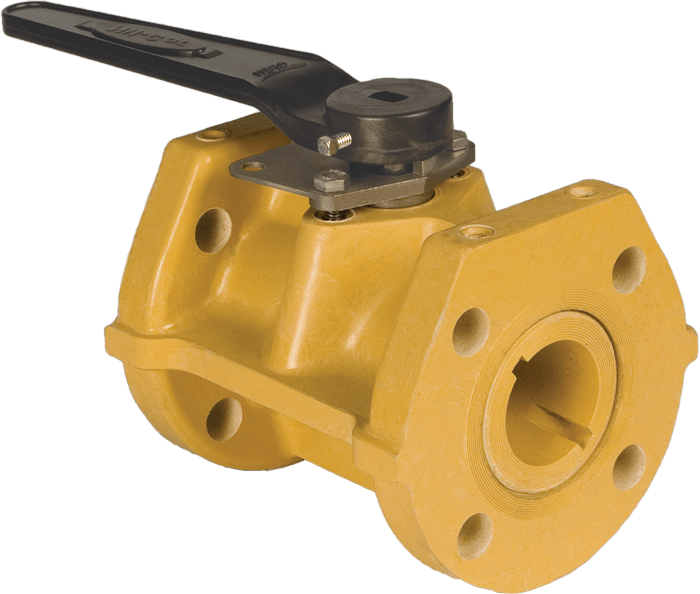

400 Series Composite Ball Valves

Sizes: 1" to 10"
275 psi Service
Derakane 470 Vinyl Ester Resin Reinforced with Glass Fibers
Tensile & Compressive Strengths Rival Steel
Ideally Suited for
  • Strong Acids up To 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Temperature Range (-)50°F to (+)215°F
Learn More

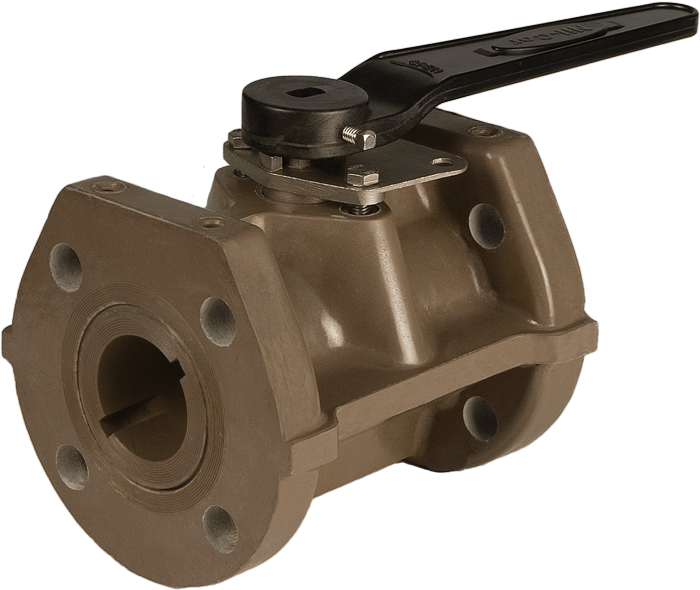

405 Series Composite Ball Valves

Sizes: 1" to 10"
275 psi Service
Derakane 470 Vinyl Ester Resin Reinforced with Carbon Graphite Fibers
Tensile & Compressive Strengths Rival Steel
Ideally Suited for
  • Strong Acids up to 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Temperature Range (-)50°F to (+)250°F
Learn More

450 Series Composite Ball Valves

Sizes: 1" to 10"
275 psi Service
E-Plus Epoxy Resin Reinforced with Glass Fibers
Tensile & Compressive Strengths Rival Steel
Ideally Suited for
  • Strong Acids up to 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Temperature Range (-)50°F to (+)250°F
Learn More

455 Series Composite Ball Valves

Sizes: 1" to 10"
275 psi Service
E-Plus™ Epoxy Resin Reinforced with Carbon Graphite Fibers
Tensile & Compressive Strengths Rival Steel
Ideally Suited for
  • Strong Acids up to 98% Sulfuric
  • Solvents, Caustics, Chlorides
  • Sulfates, Phenols, Peroxides
  • Temperature Range (-)50°F to (+)275°F
Learn More

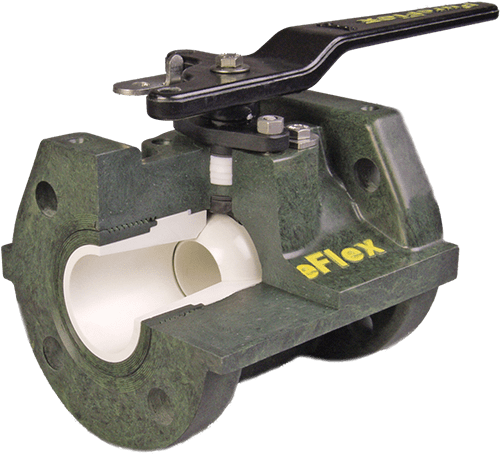

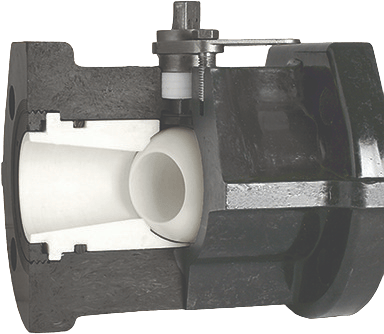

459 Series Ceramic Lined Ball Valves

Sizes: 1" to 10"
Full Vacuum to 275 psig
Advanced Thermoset Resins Reinforced with Graphite Fibers
Y-TZP(Yttria-Partially Stabilized Zirconia) Liner, Seats & Ball
Ideally Suited for
  • Abrasive Slurries
  • Thermal Cycling Processes
  • Severe Corrosive Media
  • Temperatures from (-)50 °F to (+)275 °F
Learn More

Thermoplastic Ball Valves

Sizes: 1/2" to 8"
Body Material: PVC gray or White, CPVC
Type: True Union 2000, Compact, Single Entry, Utility, CWV Ball Valves, Swing Check Ball Valves
Features & Benefits
  • Industrial Grade, Multiport, Diverter, L-pattern & T-Pattern configurations Vertical 3-Way or Horizontal Diverter
  • Built-in Handle Lockout
  • Self Adjusting PTFE Floating Seat Design
Learn More

Diaphragm Valves

Sizes: 1/2" to 10"
Body Material: PVC, CPVC, PP, & PVDF
Diaphragm Materials: EPDM 3-layer EPDM/PVDF/PTFE, Nitrile & FKM also available
Body Type: True Union or Flanged
Applications

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Learn More

2-Way Diaphragm Valves

Sizes: 1/4" to 1"
Models: Manual, Pneumatic
Connections: Flare, S-300, and Customs
Applications
  • DI Water, Chemical, Air
Learn More

FRP Gate Flow Valves

Sizes: 1-1/2" to 6"
150 psi Service
60 Mil Double Nexus® Reinforced
Body Material: Composite
Available Linings
  • Epoxy Resin
  • Vinyl & Novolac Vinyl Ester Resin
  • Furan Resin
Learn More

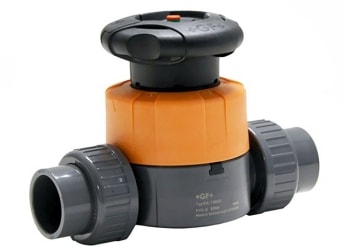

Thermoplastic Diaphragm Valves

Sizes: 1/2" to 6"
Body Materials: PVC, CPVC, ABS, PP-H, PP-n, PVDF
Applications

Chemical Process Industry, Life Sciences, Microelectronics, Water Treatment, Food & Beverage, Measurement & Control, Applications with high viscosity & solid content

Learn More

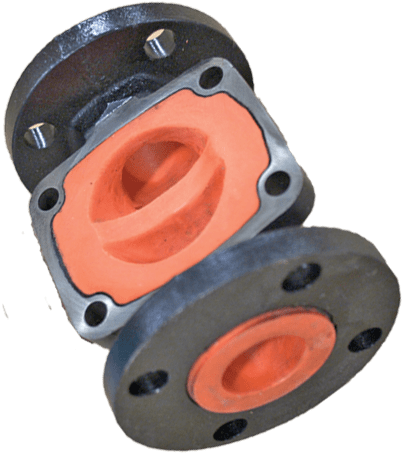

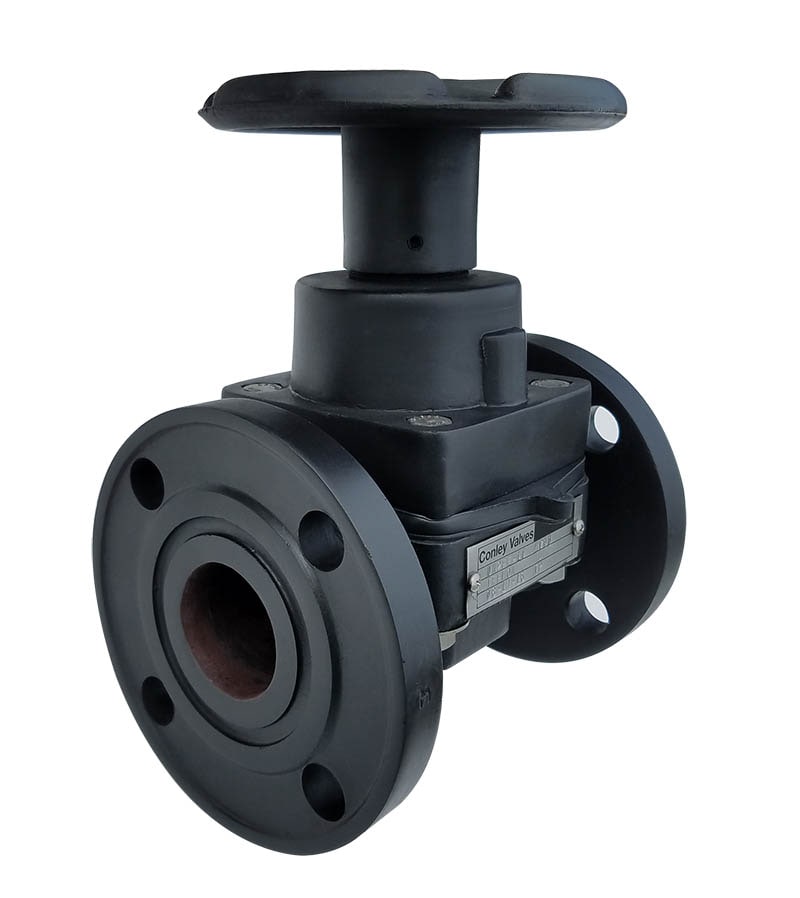

Lined Metal Diaphragm Valves

Sizes: 1/2" to 12"
200 psi Service
Body Materials: Ductile Iron, Carbon Steel, Stainless Steel
Available Linings
  • Soft or Hard Rubber
  • Neoprene
  • Polypropylene
  • PVDF
  • ETFE
  • PFA
Learn More

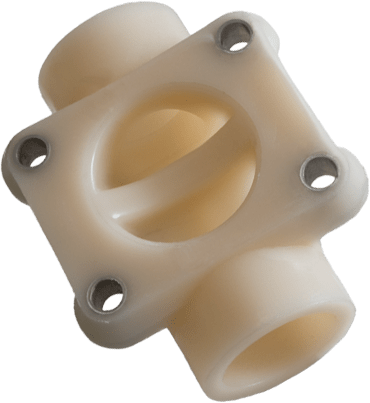

Plastic Diaphragm Valves

Sizes: 1/2" to 2"
150 psi Service
Body Materials: PVC, PVDF, Polypropylene, or PFA
Features & Benefits
  • Bubble-Tight ShutOff
  • Throttling
  • Streamline Flow / Bidirectional
  • Temperatures up to (+)300°F
Learn More

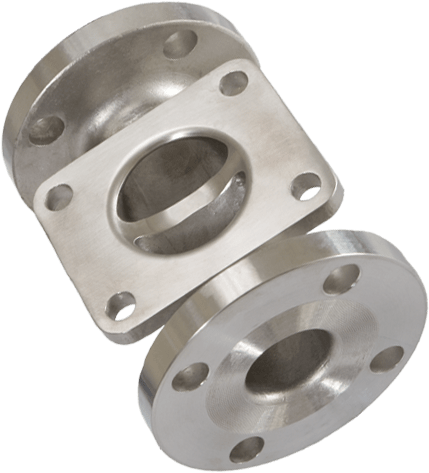

Unlined Metal Diaphragm Valves

Sizes: 1/2" to 12"
200 psi Service
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Features & Benefits
  • Bubble-TIght Shutoff
  • Throttling
  • Streamline Flow/Bidirectional
Learn More

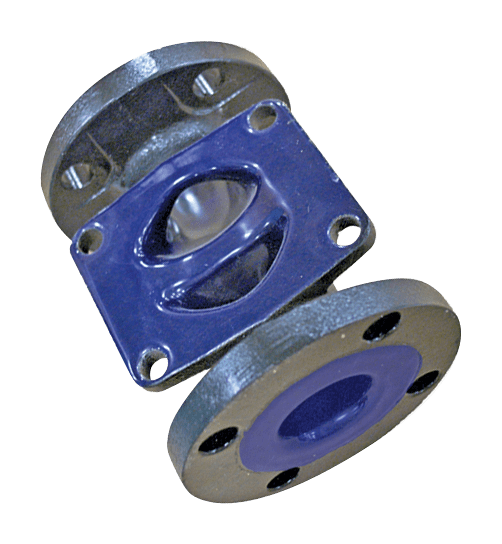

Glass Lined Metal Diaphragm Valves

Sizes: 1/2" to 8"
200 psi Service
Body Materials: Ductile Iron, Carbon Steel, Stainless Steel
Features & Benefits
  • Bubble-TIght Shutoff
  • Throttling
  • Streamline Flow/Bidirectional
Learn More

Thermoplastic Diaphragm Valves

Sizes: 1/4" to 3"
Body Materials: PVC, CPVC, PVDF, PTFE
125 psi Service
Applications

Relief, By-Pass, Back-Pressure Regulator, Back-Pressure Valve, Anti-Siphon

Learn More

Thermoplastic Diaphragm Valves

Sizes: 1/2" to 2"
Body Materials: PVC, CPVC, & Polypropylene
Style: True Union Socket/Thread & SR Thread, Spigot, Flanged
Features & Benefits
  • Low Profile Design
  • Spigot, flanged, or true union socket/threaded end connections
  • Choice of Chemical/Abrasion Resistant Elastomeric or PTFE Diaphragms
  • Easy-Grip Handle with Clear-View Position Indicator
Learn More

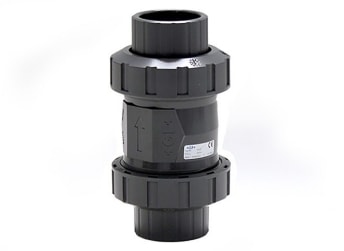

Thermoplastic Ball Check Valves

Sizes: 1/2" to 2"
PVC, CPVC, PP & PVDF
Seat & Seals: EPDM, FKM, Nitrile
Models: Socket, Threaded, Flanged, Butt End
Applications

Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Learn More

Thermoplastic Swing Check Valves

Sizes: 3/4" to 8"
Body Materials: HI-PP, PP, PVDF
Seat & Seals: EPDM, FKM, PTFE
Models: Flanged Connection
Applications

Tank inlets/outlets; preventing back-flow into a pump; one-way mixing; water hammer mitigation; pressure balancing; process intakes. In the following industries: chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Learn More

Thermoplastic Wafer Check Valves

Sizes: 3/12"
Body Materials: PVC
Seat & Seals: EPDM, FKM
Applications

Tank inlets/outlets; preventing back-flow into a pump; one-way mixing; water hammer mitigation; pressure balancing; process intakes. In the following industries: chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Learn More

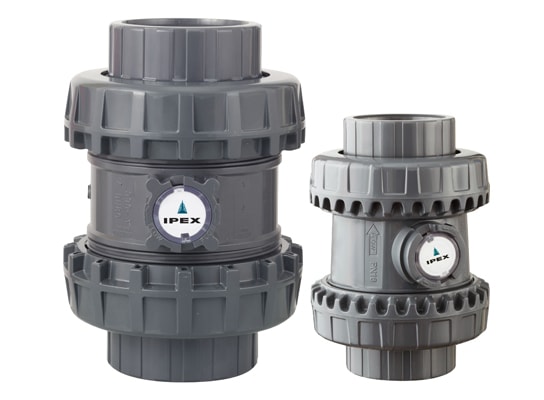

Thermoplastic Ball Check Valves

Sizes: 1/2" to 4"
Body Materials: Polypropylene, CPVC, PVC, PVDF, Kynar
O-ring: FKM or EPDM
150 psi Service
Applications
  • Temperatures up to 280°F
  • Chemical Processing, Industrial plating, waste treatment systems
  • Ultra-Pure Water, deionized/distilled and demineralized water systems
  • Optional: Labcock or 3-way
Learn More

Thermoplastic Swing Check Valves

Sizes: 2" to 6"
150 psi Service
Extra Heavy Wound Filament Wall
Liners: Epoxy Resin, Vinyl & Novolac Vinyl Ester Resin, Furan Resin
Features & Benefits
  • All Composite
  • 60 mil Double Nexus® Reinforced Corrosion Barrier
  • Epoxy or Furan Resin
Learn More

Thermoplastic Check Valves

Sizes: 3/8" to 12"
Body Materials: PVC, CPVC, ABS, PP-H, PVDF
Style: Ball Check, Angle Seat, Wafer
Applications

Chemical process industry, Water Treatment, Microelectronics, Food & Beverage, Cooling processes, Marine

Learn More

Thermoplastic Check Valves

Size: 1/4" to 20"
Body Materials: PVC, CPVC, PP, PVDF
Ball, Y-Check, Swing, Wafer
Applications

Water & Wastewater Treatment, Chemical Processing, Food & Beverage, Swimming Pools & Water Parks, Aquaculture, Aquarium & Zoo service, Pharmaceutical, Pulp & Paper, Landfill Service, Marine & Corrosive Environments, Metal Finishing & Plating

Learn More

ChemTite® Ball Check Valves

Sizes: 1" to 6"
Full Vacuum to 250 psig
UV Resistant Epoxy Coating
Heavy Duty PFA Lining
Ideally Suited for
  • Acids, Caustics & Peroxides
  • All Bleach Solutions, Solvents & Phenols
  • All Organic and Inorganic Chlorides & Sulfates
  • Temperatures Range (-)20 °F to (+)400 °F
Learn More

Thermoplastic Check & Vent Valves

Sizes: 1/2" to 8"
Body Materials: PVC
232 psi Service
Features & Benefits
  • EPDM, FPM Seals
  • Preventing back-flow of process media
  • Suitable for vertical and horizontal installations
Learn More

Thermoplastic Check Valves

Sizes: 1/4" to 4"
Body Materials: PVC, GPP, PVDF, CPVC, Polypropylene, PTFE, PVDF
Type: Normally Closed, Low Pressure
Features & Benefits
  • Normally closed works at any angle
  • Low pressure Opens with virtually no forward pressure
Learn More

100 Series Ball Checks

Lightweight Rugged and Corrosion Resistant
Fiberglass, Carbon Graphite Reinforced Vinyl Ester, or E-Plus™ Epoxy Material
Ball & Seat Manufactured from Virgin PTFE
Ideally Suited for
  • Corrosives
  • Demanding Applications
Learn More

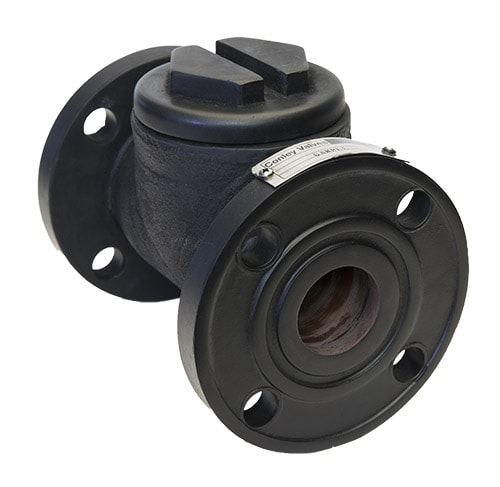

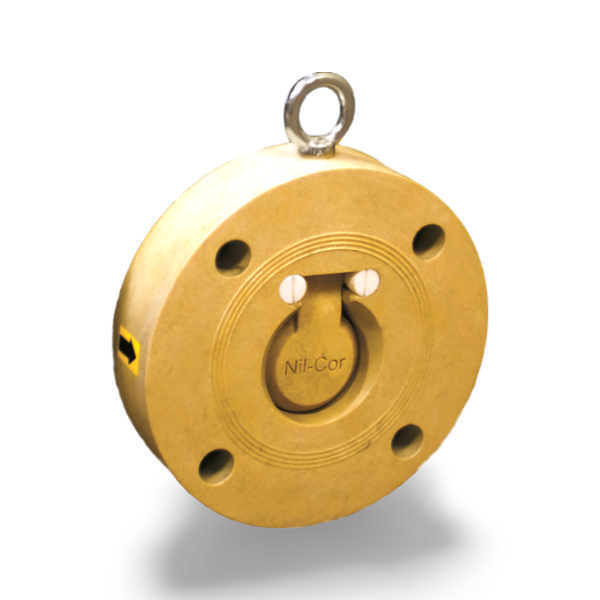

200 Series Swing Checks

Sizes: 3" to 12"
Glass Fiber-Reinforced Vinyl Ester Resin Body
PTFE or Viton® Seat Options
Ideally Suited for
  • Acids
  • All Bleach Solutions
  • Salt Water and High Chlorides
  • Temperatures up to (+)250°F
Learn More

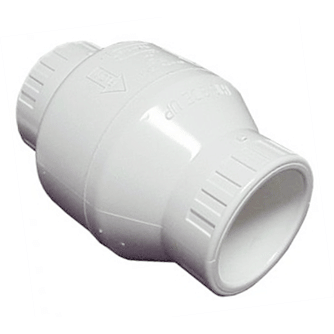

Thermoplastic Check Valves

Sizes: 1/2" to 8"
Body Materials: PVC gray or White, CPVC
Style: Industrial Swing Check, Utility Swing Check & Spring Check, In-line Adjustable Spring, Diaphragm Check Valve, Butterfly Check Valve, Y-pattern Check Valve
Features & Benefits
  • Fully Serviceable
  • Quick Release
  • Flanged End Connection Available
Learn More

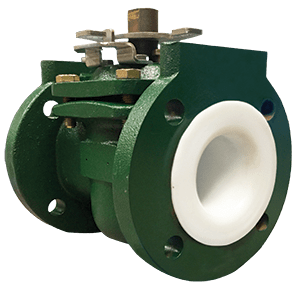

ChemTite® Plug Valves

Sizes: .5" to 12"
Full Vacuum to 250 psig
One-Piece A395 DCi Body
One-Piece Heavy-Duty PFA Liner
Ideally Suited for
  • Acids, Caustics & Peroxides
  • All Bleach Solutions, Solvents & Phenols
  • All Organic and Inorganic Chlorides & Sulfates
  • Temperatures Range (-)20 °F to (+)400 °F
Learn More

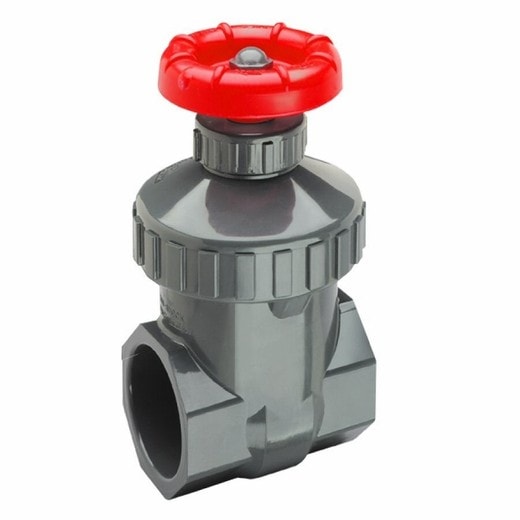

Gate & Plug Gate Valves

Sizes: 1/2" to 6"
Body Materials: PVC, CPVC
Type: Socket/Thread, Flanged
Features & Benefits
  • Non-rising Stem
  • Vacuum Service
  • High Impact Polypropylene Handle
Learn More

Thermoplastic Globe Valves

Sizes: 1-1/2" to 4"
Body Materials: PVC, PP
Operation: Handwheel, electrical actuation (1-1/2" to 3")
Characteristics

Manual control valve with rising plug. Very good flow control with a linear flow characteristic. Ok resistance to suspended solids and not recommended for use in lines with possible debris.

Learn More

Thermoplastic Angle Globe Valves

Sizes: 1/4" to 1"
Body Materials: PVC Schedule 80
O-ring: FKM
150 psi Service
Applications
  • Applications
  • Temperatures up to 140°F
  • Chemical Processing, industrial plating, chilled water distribution, chemical drainage and irrigation systems
  • Available in Angle or Y-Pattern
Learn More

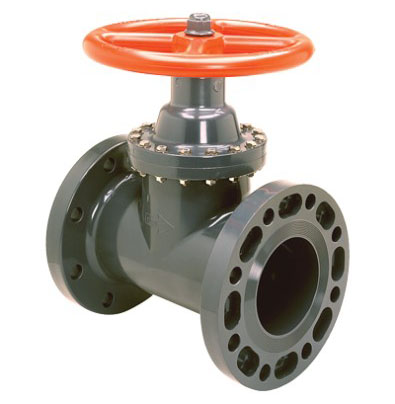

Thermoplastic Globe Valves

Sizes: 2-1/2" to 6"
Body Materials: PVC, CPVC
150 Psi Service
Ideal for
  • Temperatures up to 140°F
  • Assembled with Silicone-Free, Water Soluble Lubricant
  • Vacuum Service
Learn More

Thermoplastic Constant Flow Valves

Sizes: 1/2" to 4"
Body & Bonnet: PVC
Seals: EPDM
Applications

Chemical processing, aquariums, mining, water treatment, swimming pools, salt water, semiconductor

Learn More

Constant Flow Valves

Sizes: 1/4" to 3"
Flow: 1/4 - 12 gpm
15 to 120 psi Service
Features & Benefits
  • Valves are pre-set and tamper-proof
  • Automatic in operation - no adjustments
Learn More

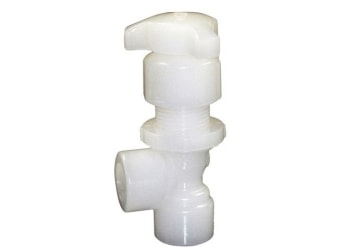

Needle Valves

Sizes: 1/8" to 1"
Flow Direction: Straight, Vertical Angle, Horizontal Angle
Body Material: PPN, PVDF, PFA O-ring, FKM
Ideal for
  • Critical high purity and aggressive fluids
  • Diaphragm Isolates Moving Part from Wetted Part
  • Ideal for Use with Instrumentation Fittings as a Sampling Valve
Learn More

Needle Valves

Sizes: 1/4"
Body Materials: CPVC Schedule 80, PVC Schedule 80
O-ring: FKM
150 psi Service
Applications
  • Applications
  • Temperatures up to 140°F
  • Chemical Processing
  • Industrial
Learn More

Needle Valves

Sizes: 1/4" to 3/8"
Body Materials: PP-H, PVDF
150 psi Service
Applications
  • Corrosion-resistant
  • Ideal flow characteristics
  • Shorter installation length enables more compact systems
  • Integrated fastening system for direct mounting
  • Full serviceable valve with an ergonomic handle and built-in seal removal
  • EPDM & FPM seals available
Learn More

Gate Flow Valves

Sizes: 1/2" to 4"
Body Materials: HI-PVC
Operation: Handwheel, electrical actuation (1-1/2" to 3")
Applications

Full port valve with a sealing plug that lifts fully out of the flow path when the valve is open. Includes a drain plug at the base of the valve for cleaning out accumulated sediment. Minimum head loss and high resistance to clogging due to debris. Good resistance to suspended solids and poor flow control.

Learn More

Distribution Blocks

Sizes: 1/4" to 1"
Materials: PP, PVDF, PFA, PTFE, FKM
Type: Multi-port manifold Valve, Sampling Valve, Ball Valve
Applications
  • Semiconductor, Solar panel manufacturing, Bio-Pharm, Chemical
  • Gas & liquid flow
Learn More

Control Valves

Size: 1/4" to 1"
Type: Pinch Valves, Pressure Regulators, Flow Control Packages
Features & Benefits
  • Available in Manual, Electric, & Pneumatic
  • Connections: Flare, S-300, 1/4" Flare or S-300 24 V DC
Learn More

emtechnik Ball & Needle Valves

Sizes: 1/8" to 1/2"
Body Materials: PP, PVDF, PFA, PTFE, PPN
O-ring: FKM
Type: Ball, Needle
Applications

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Learn More

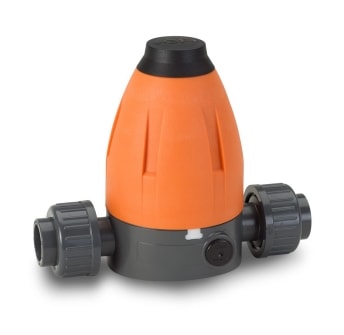

Pressure Regulating Valves

Sizes: 2-1/2" to 4"
Body Materials: PVC, CPVC, PVDF, PVDF-HP
EPDM, PTFE/EPDM
Applications

Water treatment, Chemical Process, Microelectronics

Learn More

Solenoid Valves

Each solenoid valve is field interchangeable for use in either double acting (4-way) or spring return (3-way) rotary actuators and is available in single coil, dual coil, or 3- position configurations (open centers, closed centers, or centers-in-pressure)

Learn More

Angle Pattern 2-Way Valves

Sizes: 1/4" to 2"
Body Materials: PVC, CPVC, PVDF, PTFE, Natural Polypropylene
125 psi Service
Features
  • Available in Compact Version
  • PTFE Shaft Prevents Chatter & Sticking
  • Triple U-cup seal isolates spring provides added safety
  • Angle pattern offers compact size and convenient piping
Learn More

Shut-Off & Diverter Valves

Air Operated Shut Off Valves
  • Compact PTFE Diaphragm Shut Off Valve
  • Compact Globe Style Shut Off Valves
  • Air Operated Pinch Valves
Manual Shut Off Valves
  • Hand or Foot Operated Globe Style Shut-off Valves
Air Operated Quick Dump Valves
  • Normally Closed
Learn More

Custom Valves

For unique or unusual applications, be it size, flow, pressure, function, or purpose, Plast-O-Matic has the engineering and lean manufacturing capability to provide custom solutions as you need them. From minor modifications to completely new designs, Plast-O-Matic has created more one-of-a-kind corrosion resistant and ultrapure valves and controls than any other manufacturer. Contact your distributor, regional representative or our Technical team in Cedar Grove NJ to discuss your needs.

Learn More

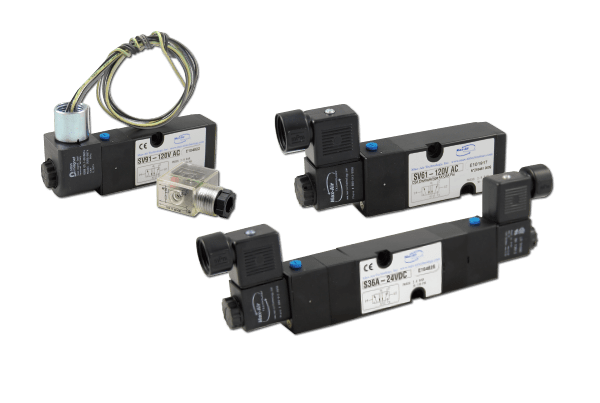

Solenoid Valves

Size: 1/4" - 1"
Type: Normally Closed, Normally Open, 3-Way Solenoid Valves
Applications
  • Pressure, Drain, & Vacuum Service
  • When a diverter or "sampling" Valve is Required
  • Compact versions available
Learn More

Venting Valves & Vacuum Breakers

Air Release Valves provide high capacity venting of gas at system startup while Degassing Valves vent trace amounts of gas as it occurs during system operation. Vacuum Breakers open automatically in response to minimal vacuum to prevent unwanted siphonage or collapse of storage tanks. Plast-O-Matic degassing vent & vacuum breaker valves automatically seal bubble tight when not in use; air release & degassing valves automatically reseal when liquid fills the valve.

Learn More

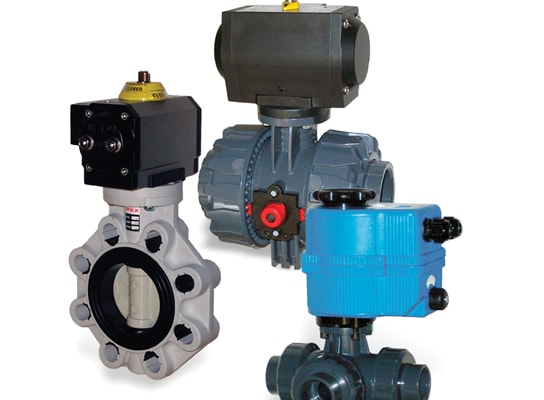

Actuators

Asahi/America's pneumatic and electric actuators have pushed the state-of-the-art since 1987. Today's offerings have added numerous features and material choices to accommodate the broadest range of applications. We have been the principle pioneer of corrosion resistant thermoplastic valves, actuation and pipe in the United States, providing a broad product line, extensive engineering and custom design services.

Learn More

Actuators

Can install a variety of valve accessories to meet most industry specifications such as explosion-proof and hazardous area. Available in Pneumatic and Electric.

Features & Benefits
  • Position Feedback
  • Digital Positioner
  • Connection to ASI Bus System available
  • Internal fail-safe battery backup
Learn More

Actuators

Complete range of actuators and accessories for ball and butterfly valves for your critical installation requirements. Available in Pneumatic or Electric

Applications:
  • Waste Water and Water Treatment
  • Chemical Transfer and Processing
  • Aquatic and Animal Life Support Systems
  • Mining and Mineral Processing
  • HVAC
  • Pulp and Paper
  • Food and Beverage
  • Marine
Learn More

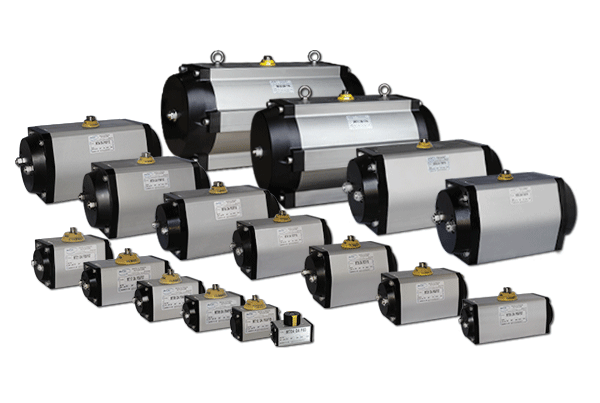

Actuators

Automation is an ideal solution for precise control of many valves in a system, when valves are remotely located, or when the process requires constant monitoring and adjustment.

Features & Benefits
  • Corrosion Resistant Aluminum Body
  • Preloaded springs
  • Adjustable cams
  • Double Acting, Normally Closed, Normally Open
Learn More

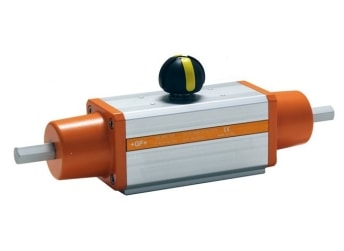

Pneumatic Actuator

  • Aluminum: Extensive options for easy valve integration, flexible customization, reliable operation
  • Flanged Aluminum: Removable flange for valve integration, flexible customization, and reliable operation.
  • Stainless Steel: Dual patented travel stops allow up to 110° of stroke in a 90° actuator.
  • Technopolymer: Available in three sizes, your applications requiring plastics and corrosion resistance are covered with up to 500 in-lbs of torque (Double-Acting).
  • Polymer: Designed to withstand the most extreme environments.
  • UT 180°: Offer a complete range of extended body, double-acting actuators from 120° up to 180°.
  • Scotch Yoke Actuators: available in two distinct configurations: SHD (symmetric) and CHD (canted) heavy duty selectable torque profiles are designed to perform in the most demanding applications.
Learn More

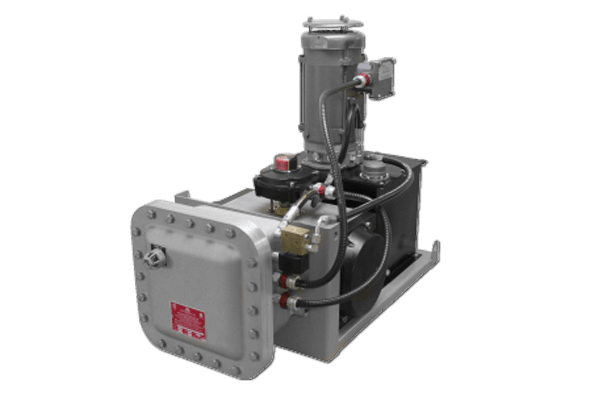

Electro-Hydraulic Actuator

EH Series: Standard Series
  • Highly customizable solution for self-contained fail-safe electro-hydraulic ESD applications
EHS: Slimline Series
  • The best features of the EH Standard Series and a new circuit board control technology designed to minimize the package size, and also the overall cost.
EHD: Heavy Duty Series
  • Built upon the Max-Air SHD/CHD Scotch Yoke platform for even higher torque applications, up to 2,738,990 in-lbs (228,250 ft-lbs).
Learn More

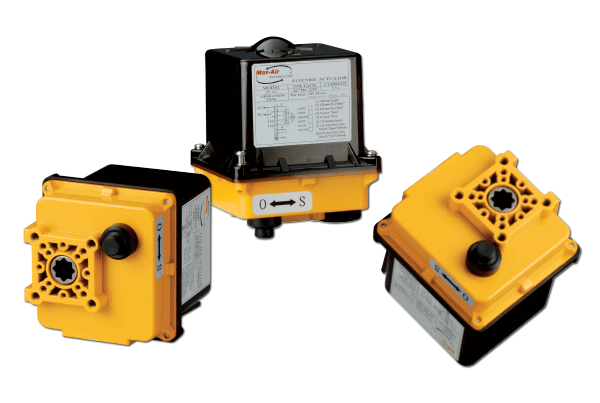

Electric Actuator

AE Series
  • Features a compact design, minimizing the complete valve package envelope size and its weight and therefore eliminating the need for pipe supports.
MACC Series
  • This little MACC powerhouse, roughly the size of a soda can, is designed to fit into the smallest of locations, generating 160 in-lbs of torque.
Learn More

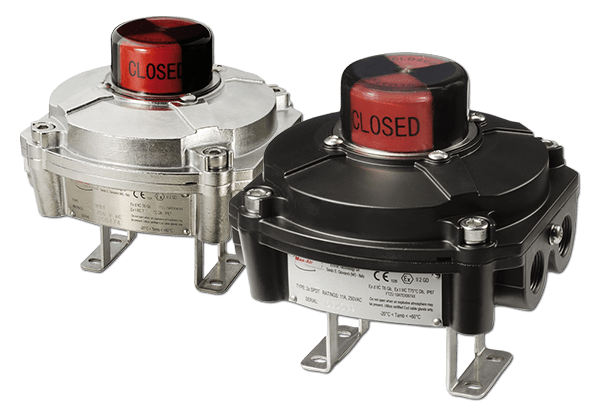

Limit Switches

Material: Technopolymer, Aluminum, Stainless Steel, Explosion Proof Aluminum
Type: Mechanical, Proximity, Inductive
Features & Benefits
  • Applications such as hydrogen and acetylene, other hazardous environments
  • Fully certified to North American and European standards
Learn More

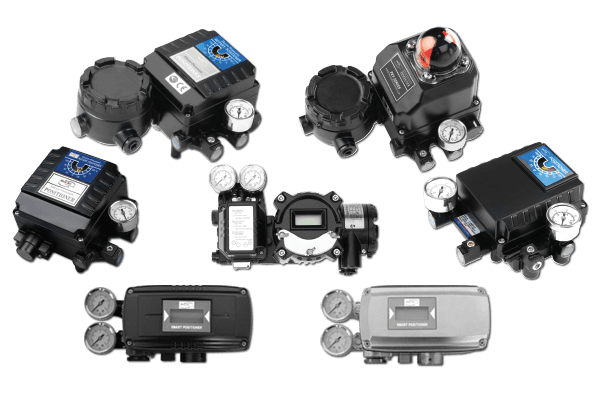

Positioners

Positioning equipment to control the position of a valve such that a given process will achieve certain desired flow parameters. An example of this type of positioning control will include the mixing of hot and cold water, such that a specified downstream temperature requirement is achieved.

Learn More

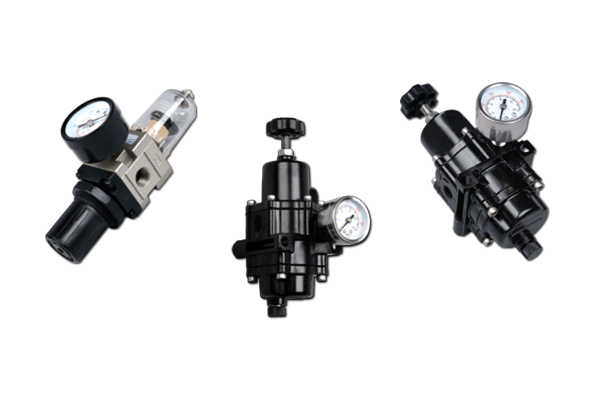

Air Handling

  • Filter Regulators
  • Volume Air Boosters
  • Speed Controls
  • Lockup Valves
  • High Capacity Flow Devices
  • NV62L Block & Bleed Valve
Learn More

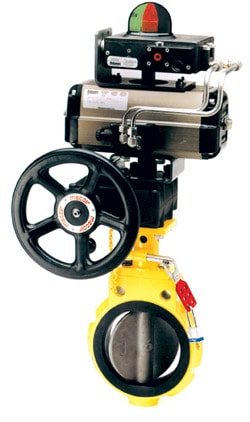

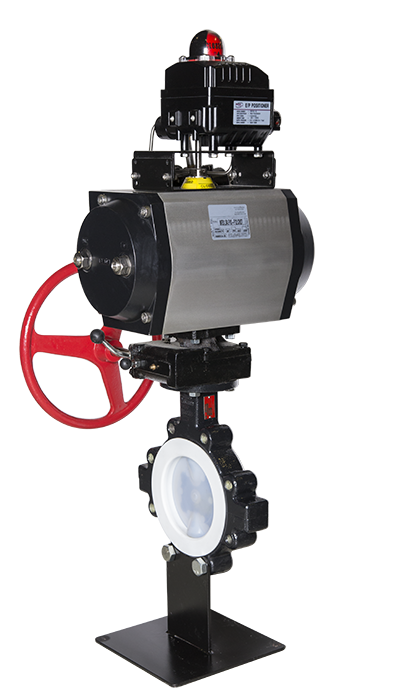

Automated Valve Controller

Whether you require on-off or modulating service, all Mosites Butterfly Valves can be custom engineered for flow control applications. Since 1961, we have engineered specific automation packages for the Mosites Butterfly Valve to meet your most critical control valve requirements. We offer a full range of actuators, solenoids, limit switches, and other accessories. As an option, we also offer locking type adapters for automation packages.

Learn More

Actuators

Actuated Ball Valves feature trunnion safety design and dual sliding seats for ultra-smooth operation and repeatable bubble-tight shutoff with an incredibly long cycle life. Available 2-way and 3-way, in 3/8'- 4' sizes. Available in Air & Electric.

Learn More

Automated Valve Controller

Sizes: 1/2" to 42"
Type: Rack & Pinion, Vane
Features & Benefits
  • Low Profile Molded Mounting Bracket
  • Automating Control
  • Mild Control Applications in Chemical Process Industries
  • High Capacity/High Rangeability Applications
Learn More

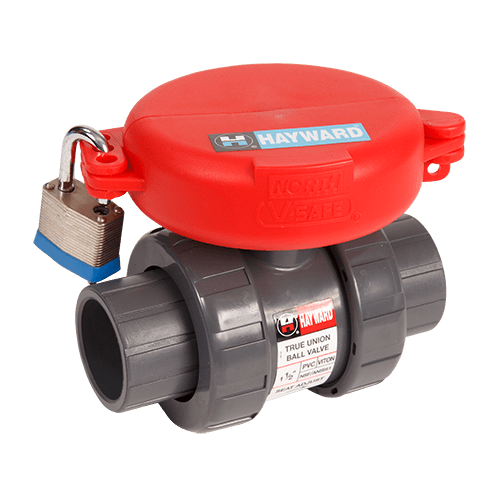

Valve Lockout

For Ball Valves up to 6"
Latches & Lockable in Open / Close Positions
Description

Valve lockouts are offered to prevent unauthorized use or operation of a valve in a piping system. Can be used with up to 3 locks.

Learn More

Pressure & Flow Control Components

  • Air Release Valves
  • CSS Series Calibration
  • Cylinders / Columns
  • IV Series Injection Valves & IQ Series Injection Quills
  • Back Pressure Valves
  • Pressure Regulator Valves
  • DAB Series
  • NVA Series Needle Valves
  • AV Series Angle Globe Valves
  • LC Series Universal Stopcock Valves
Learn More

Strainers & Filters

Hayward offers basket strainers and y-strainers to strain particulate that may clog or damage process fluid pipelines.

  • Basket Strainers
  • Y-Stainers

Available in PVC, CPVC, GFPP and Eastar® Up to 2 in. sizes have a socket and threaded end connections. Each strainer comes with a standard plastic basket.

  • Bag Filters & Bags
  • Cartridge Filters & Cartridges
  • Aquatic Sand Filters
Learn More

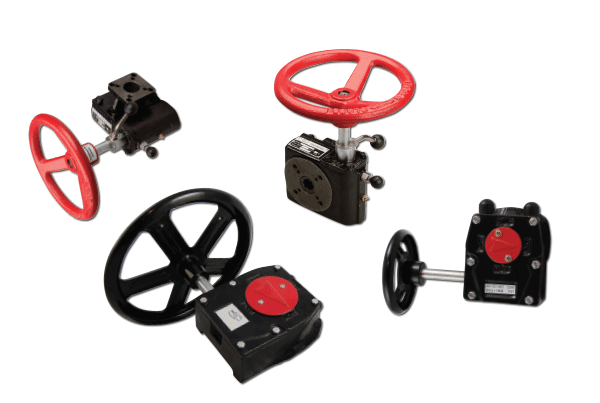

Gear Operators

Max-Air Technology offers two primary types of gear operators for use with quarter-turn valves; a manual gear, and a declutchable gear. Both types are designed with a broad output torque range and are generally designed for use with ISO 5211 valve mounting interfaces, but not required.

Learn More

PureSite™ FEP Sight Flow Indicator

Translucent Thickwall Extruded FEP
Will Not Impart Any Taste, Color or Odor to Fluid Media
Safe & Unbreakable
Zero Corrosion Rate
Ideally Suited for
  • Pharmaceutical
  • Food & Beverage
  • Chemical & High Purity
  • Temperature Range (-)100°F to (+)300°F
Learn More

Sight Glass & Level Indicators

Sizes 1/2" to 8"
For safe, positive indication of flow and clarity of corrosive or ultra-pure liquids.
  • Single-wall design for liquids compatible with acrylic
  • Double-wall design features Pyrex inner cylinder for all other applications
  • Optional streamers provide instant visual proof of flow.
Learn More

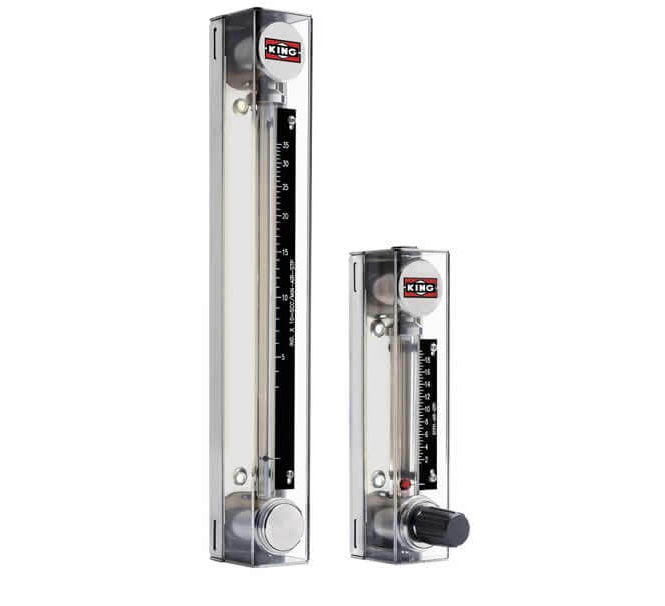

Glass Flowmeters

Reading scale up to 250mm
Stainless Steel Casing
Connections: Horizontal, NPT, In-line FNPT, Flange
Applications:

Low-Flow & Gas Purges, Borosilicate Glass metering Tube

Learn More

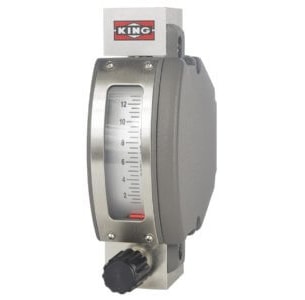

Stainless Steel Flowmeters

Reading scale up to 250mm
Magnetically Coupled Dial Type Display or Detachable, Direct Reading Scale
1200 psi Service
Connections: Output, NPT, or Flanged
Applications:

Low-Flow, High-Pressure Applications

Learn More

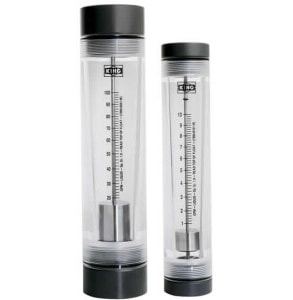

Acrylic, Polysulfone, & PVC Flowmeters

Reading scale up to 250mm
Meter Material: Acrylic, Polysulfone, or PVC
Connections: Horizontal, NPT, In-line FNPT, Flange
Applications:

Low-Flow & Gas Purges, Borosilicate Glass metering Tube, Stainless Steel Frame with Horizontal Connections

Learn More

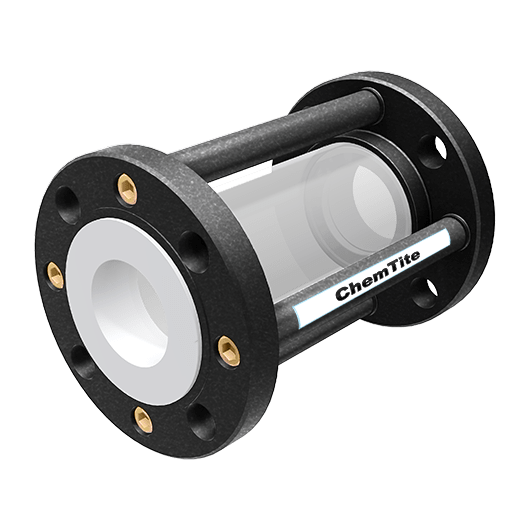

FLO-VU® Sight Flow Indicator

Full 360° Unobstructed View
150 psi Service
Lexan® Impact Shield
Unique PTFE/Viton® Envelope Type Gasket
Features & Benefits
  • Gas Purge Ring
  • General Purpose and Explosion Proof Light
  • Vertical Drip Tube
Learn More

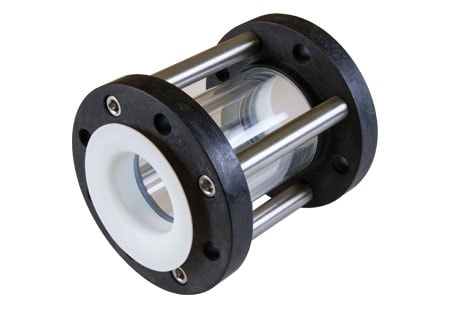

360° View Sight Flow Indicator

Full 360° Unobstructed View
150 psig Service
Lexan® Impact Shield
Energized Seat Design: PTFE/Viton® Energizer Gasket
Ideally Suited for
  • All Acids & Solvents
  • All Organic & Inorganic Chlorides & Sulfates
  • All Bleach Solutions, Phenols, Caustics & Peroxides
  • Temperature Range (-)20°F to (+)350°F
Learn More

Bull's Eye Sight Flow Indicator

Ideal for Fluid Motion, Flow & Color Inspection
Rugged Ductile Iron Housing
Thick Borosilicate Glass for Impact
Ideally Suited for
  • All Acids & Solvents, Organic & Inorganic Chlorides & Sulfates
  • All Bleach Solutions, Phenols, Caustics & Peroxides
  • Temperature Range (-)20 °F to (+)400 °F
Learn More
